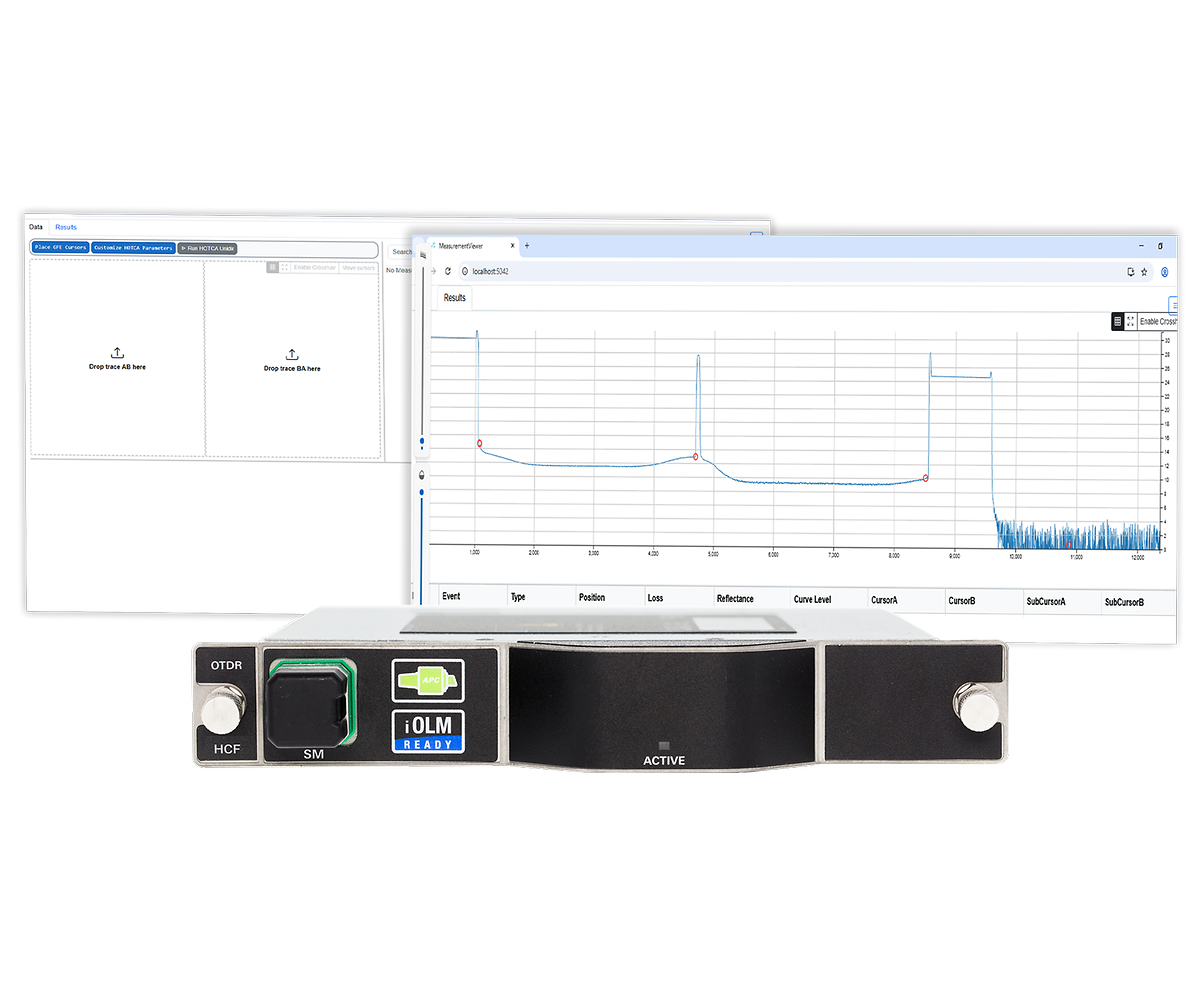

NS-348x – HCF(Hollow-Core Fiber) OTDR Test Kit

Key features

n  Hollow-core fiber unidirectional and bidirectional post-processing software.

n  Hollow-core fiber range up to 150 km (assuming 0.1dB/km fiber).

n  Support multiple fiber types (HCF and SMF), each with its own IOR, on a single OTDR trace.

n  Hybrid cable testing (HCF and SMF) with automated parameter adjustment.

n  Dynamic range up to 46 dB (based on SMF measurement).

Hollow-Core Fiber OTDR Test Kit enables users to:

n  Dynamically adjust the IOR for hybrid cables

n  Decouple the gas signal around the fiber optic signal splice

n  Measure actual splice loss and reflectivity

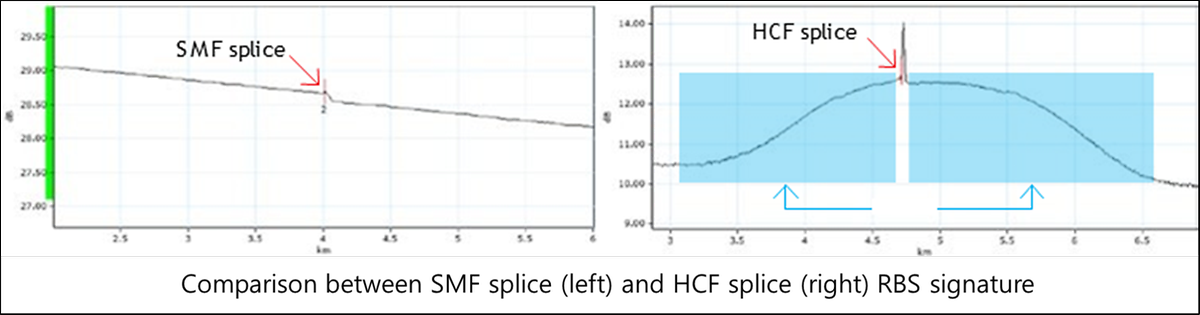

n  Identify problems related to the HCF-SMF transition splice

n  Evaluate overall cable loss and ORL

n  Evaluate HCF section loss and attenuation
